Peanut Butter Making Machine

※Description:

Peanut Butter Making Machine is designed by reference of the foreign tech. It is consisted of feeder elevator, continuous nuts roaster, split peanut peeling machine, grinding machine, pump, storage slot, cooling machine, mixing machine, vacuum deair, etc.

It has advantages of high automation, easy-operating integrated control, stable performance, high product quality, etc.

This device can produce a variety of peanut butter, for instance crunchy peanut butter, creamy peanut butter, salty peanut butter, sweet peanut butter and other peanut butter. We are able to produce peanut butter  line with different capacity in accordance with customers' needs and requirements

※Application:

Peanuts butter/Cashews butter/Almond butter/Hazelnut butter.etc

※Processing:

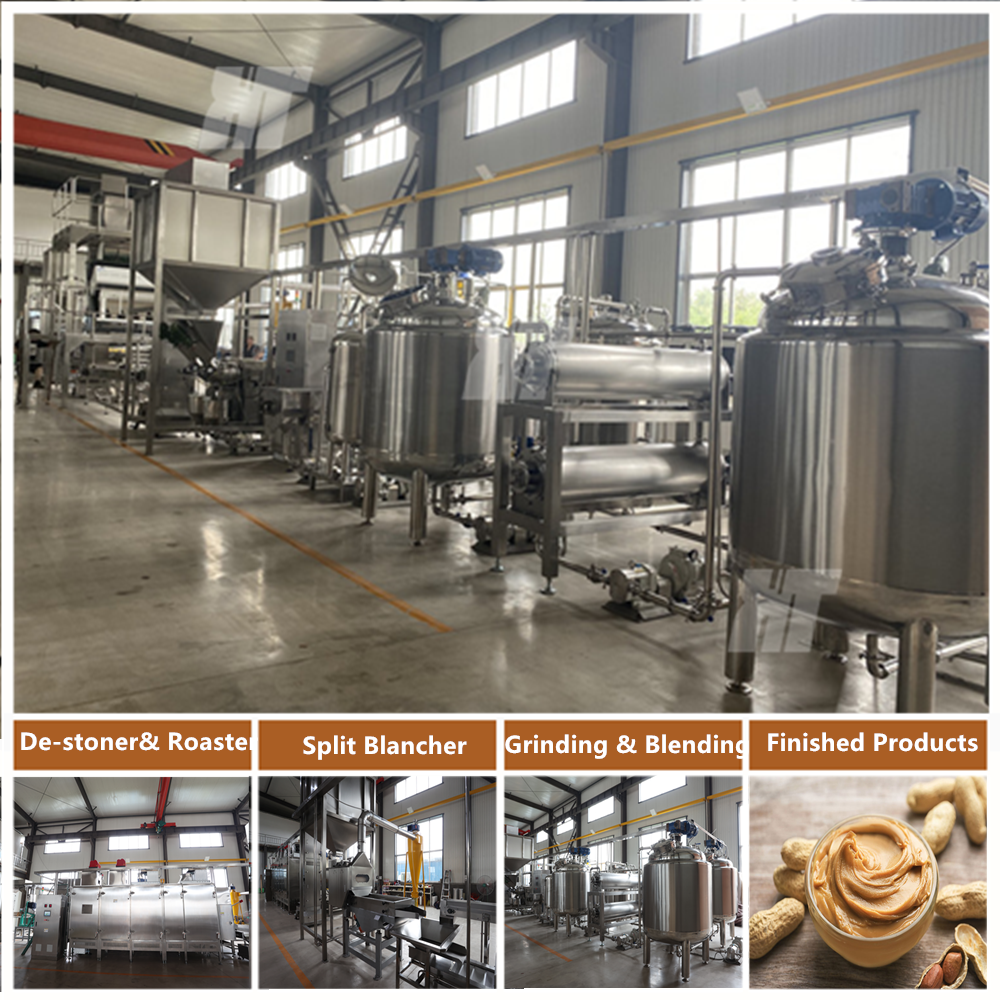

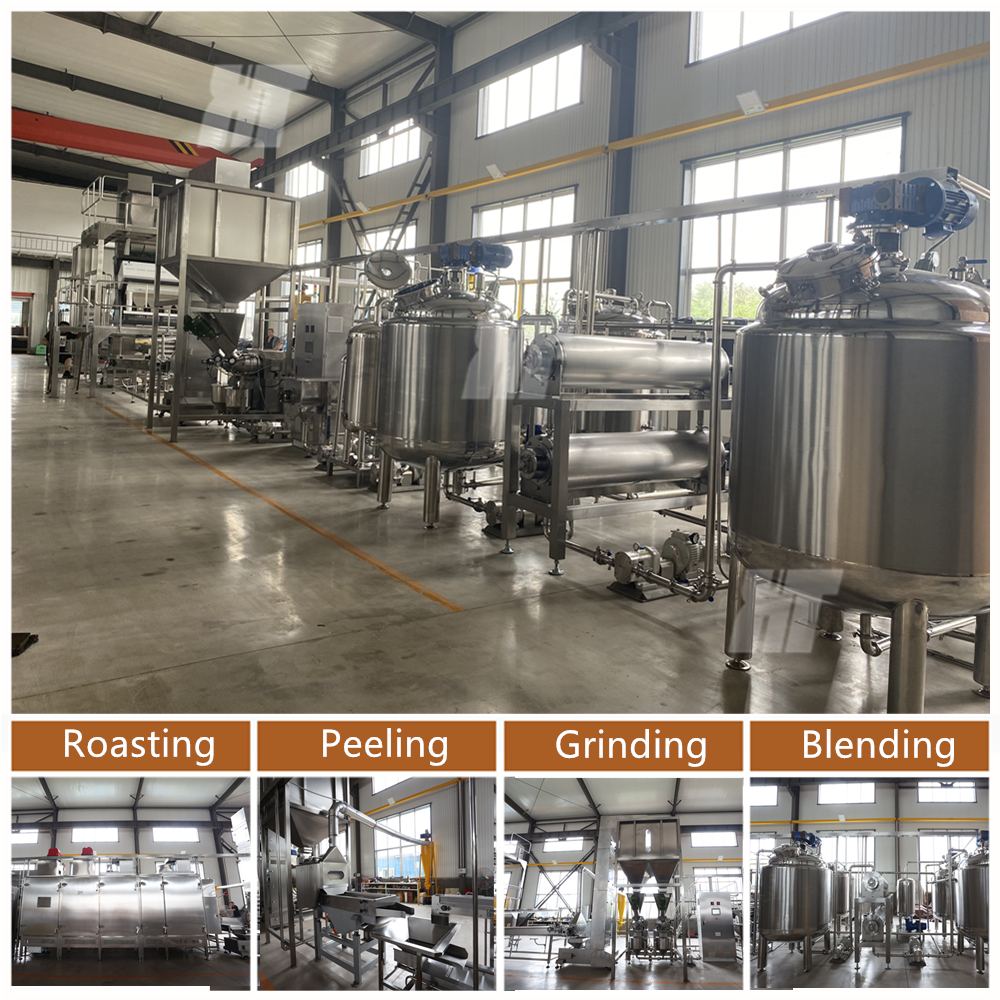

Peanut Roaster------Peanut Red Skin Peeling Machine---Peanut Butter Grinder Machine---Mixing Tank---Cooling Machine---Vacuum Tank---Butter Filling Machine.

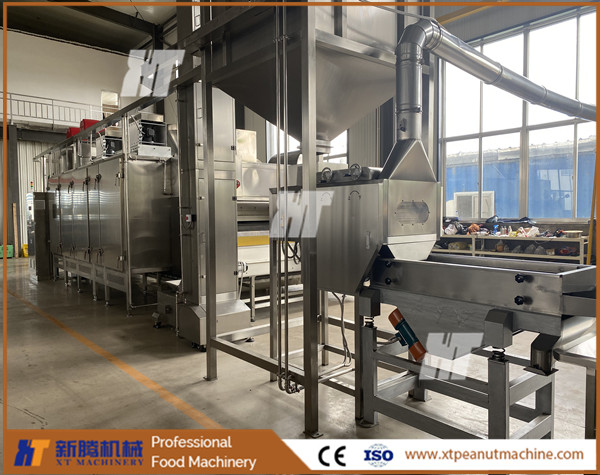

Continuous Peanut Roaster

Multifunctional Continuous Nut Roaster provides equal heating and even hot air distribution, adopt alternate heating both from bottom and top, hence multifunctional peanut roasting machine can guarantee the premium roasting quality, correct color and proper moisture ratio.

The belt type nut roaster can dry & roast all kinds of nuts, dry fruit, it mainly contains automatic feeding system, heating device, transferring conveyor, cooling fan and vibrating discharger. With a recycle conveyor moving, the raw materials will be fed in, dried & roasted by the hot air evenly, finally optimized products are obtained at end of roaster with air temperature. Due to nuts stay on the tray to move forward, continuous roaster is also called conveyor roasters.
For this Multifunctional nut roaster we provide engineer oversea service for guiding installation, debugging, training, maintenance and continuous technical support.

Split Peanut Peeler

Split Peanut Blancher is designed to split roasted peanut into half, under this split blanching, the red skin is taken off and collected by air cyclone. This kind of split blancher can make breakage peanut kernels.

Split peanut blanching machine applies to peanut blanching line, peanut chopping line, peanut butter line. This kind of peanut peeler can adjust the gap of rubber belts, in order to satisfy different processing purpose, bitter germs will be removed by vibrating sifter after the blanching chamber.
Split peanut blancher contains bucket elevator, blanching machine and air cyclone, it is an entire complete system to finish the blanching job. It can be designed to two type, a. full stainless steel, b. contacting parts stainless steel and painting carbon frame.

First Grinder

By the relative movement of the different geometric shaped stator and rotor under high-speed rotation, the material to be processed enters into the mill under the action of the dead weight and air pressure force and centrifugal force and of the composite force, such as the strong shearing, rubbing, impact, high-frequency vibration when the material is through the annular variable gap, and then the material will be effectively dispersed, pulverized, emulsified, admixture, thereby the product with the satisfactory size and the quality will be fulfilled.

Second Grinder

High-speed cutting and milling machine, according to different raw materials, fineness requirements and product use, can be adapted to different grinding fineness of micro-cutting tool assembly.

The equipment is suitable for processing peanut butter, chili sauce and various fruit and vegetable sauces. This precision cutting principle is a breakthrough processing method with multi-function, which can meet your needs for accurate and controlled crushing.

The equipment is designed with a reasonable sealed shell, which can effectively avoid the overflow of materials, steam and liquid. At the same time, it is made of food grade stainless steel to ensure the maximum durability and hygiene requirements The equipment has large capacity, 24-hour operation, high sanitation, low maintenance, simple operation and easy cleaning.

Peanut Butter Cooling Machine

Peanut butter cooler is designed to cool down the temperature of peanut butter into room temperature, it realize the hot peanut butter in and cold peanut butter out continuously, the outlet can connect with peanut filling machine directly.

※Feature:

This peanut butter production line include the peanut roaster,peanut dry peeling machine,automatic feeding machine,grinding machine,vacuum degassing machine,cooling machine and so on.

1.The character is high automation,good reliability,full enclosed production,No pollution,the finished peanut butter has the export standard.

2.The detailed technology and capacity can be customize according to the customer requirements.

3.This peanut butter production line can produce natural peanut butter,stable peanut butter,smooth type peanut butter,salty peanut butter,sweet peanut butter,particle type peanut butter and so on.

4.It also can produce the tahini and walnut butter,can be equipped with variety of configuration and capacity according to the different customer requirements.

In a word,this production line has the advanced technology,stable quality of products.It a best choice for food processing plant.

Finished Product
